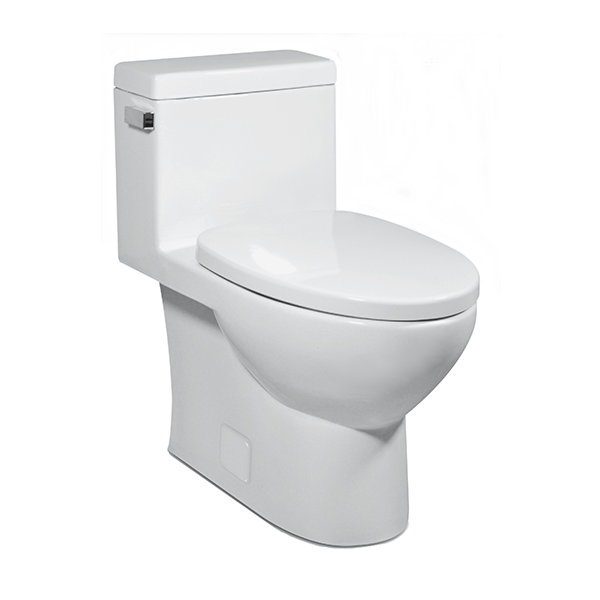

VISTA One-PIece Toilet
EPA WaterSense 1.28gpf
Rimess Wash Action
Chair-Height, Compact-Elongated Seat

The newly re-designed Vista II is the perfect complement to both modern and transitional bathroom environments with its’ slimmer, sleeker profile and compact-elongated bowl. The trapway now includes bolt cover tiles for a fully skirted look – both easy to install and maintain. The Vista II features Icera’s new Rimless Wash. Two large twin jets at the back of the bowl with an open rim facilitate a powerful flush and better hygiene. Combined with the MicroGlaze? anti-microbial, stain-resistant glaze, the Rimless Wash makes grime under the bowl rim a thing of the past.

Featuring Icera’s EcoQuattro flushing technology, the Vista offers exceptional performance and water efficiency as well. It is EPA WaterSense-compliant, using only 1.28 gallons per flush and capable of clearing over 1,000 grams MaP in independent testing (as compared to an industry average of only 350 grams). With an oversized 2-1/8″ trapway (larger than industry standard), clogging is virtually eliminated. Best of all, the flush mechanism is quiet.

A premium soft-close, quick-release toilet seat is included. The package also includes all accessories needed for in-home installation (basic tools are required), and comes with an installation guide.

Attributes
> Vitreous china one-piece toilet
> Chair-height 16-1/2″ (420 mm) bowl rim
> Compact-Elongated bowl
> Soft-close, quick-release seat and cover

Action
> HET (high-efficiency toilet)
> Rimless Wash
> 1.28 gallons (4.8 liters) per flush
> Oversized 3″ flush valve, chemical-resistant flapper
> Siphon-jetted, 2-1/8″ trapway
> Fully-glazed internal trap-way
> 100% factory flush tested

Accessories Included
> Toilet seat and cover, with slow-close hinges and quick-release mechanism
> Bolt cover tiles (2 each)
> Solid metal trip lever

Nominal Dimensions
> 27-1/2″ x 15″ x 28-1/8″
> 700 x 380 x 715 mm
